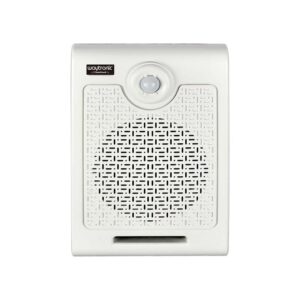

WT-PS1
Features
- Dimension: 27*18*13CM
- 8-level volume control
- Support the SPI-Flash memory.
- Built-in 10W power amplifier circuit.
- Using infrared induction technology.
- The sensor has wide induction range.
- Maximally support 32G SD card as storage.
- Offline replace the voice with no tools and software;
- Support two play modes: loop sequence, single playback.
- Support DIY. Features and accessories can be customized;
- Built-in MP3 module with 5-30 minutes, supporting MP3 format.
- Support SD card playback. SD card does not support hot-plug and play the voice of the SPI-flash without SD card.
Description
Description
Specification
Power supply | DC12V/2A | ||
Working current | Sleep State | ≤880uA | |
Playback State | ≤500mA | ||
Stand-by Current | ≤18.4mA | ||
Audio format | MP3 | Bit rate: 8~320Kbps | |
Audio output power | 8Ω/10W(typical value) | ||
Infrared induction range | ≥4 meters | ||
Sound volume | ≥100dB | ||
Effective distance of Bluetooth connection | ≤10 meters |
