Motion activated noise maker（WT-M14）
Features
- Small and exquisite, playing MP3 audio with excellent sound quality.
- Two levels of volume.

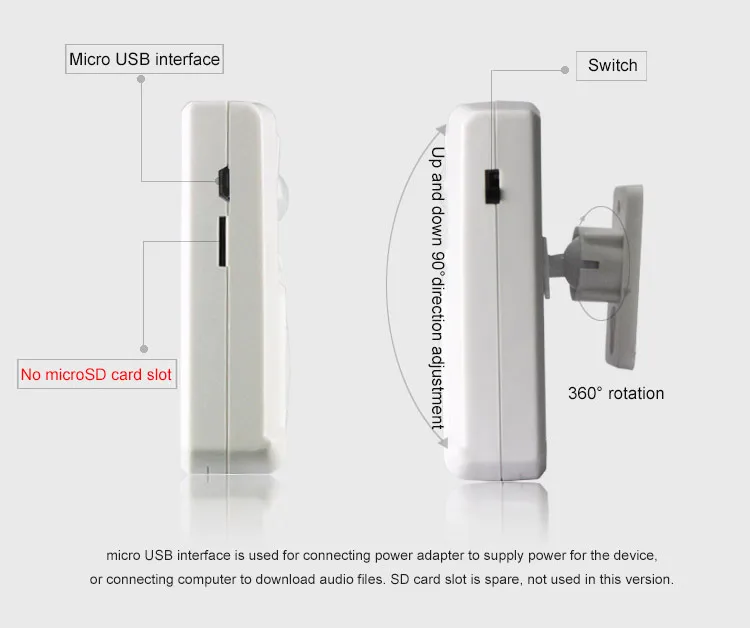

- Micro USB interface.
- Human body induction, the induction distance up to 4 meters.
- Using WT2003B03 voice chip solution, unrepeatable triggering pulse.
- Standard 32Mbit SPI-flash, available to replace capacity according to customer requirements.

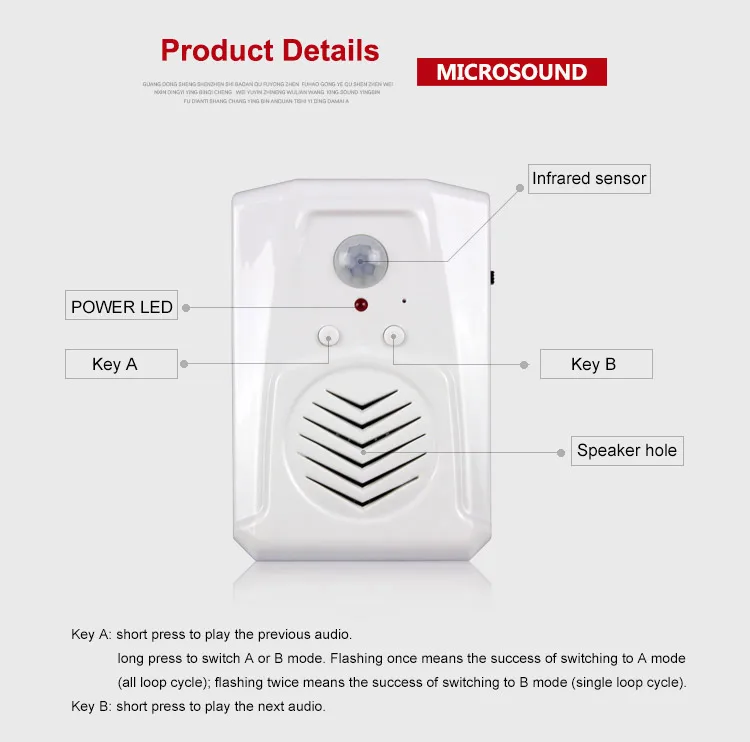

- A and B buttons are corresponding to the previous audio, the next audio.
- A mode is all loop play; B mode is single cycle.
- Memory: external micro SD card or internal FLASH.
- Support to copy the audio files from micro SD card to Flash.

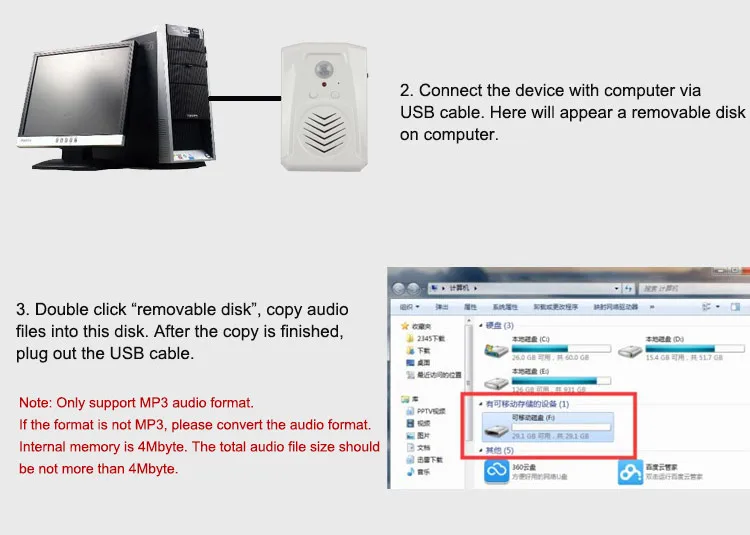

- Support to replace contents of micro SD card through micro USB interface on computer.

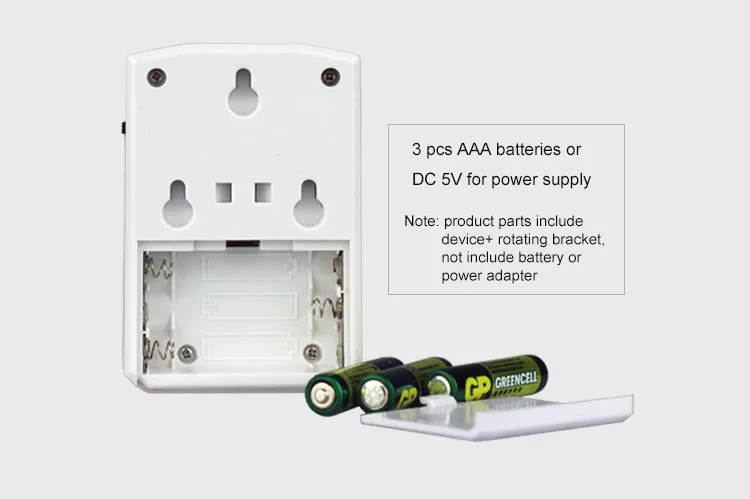

- Using three AAA batteries or USB for power supply, built-in 8Ω 1 watt speaker.
Description
Description
Function Introduction

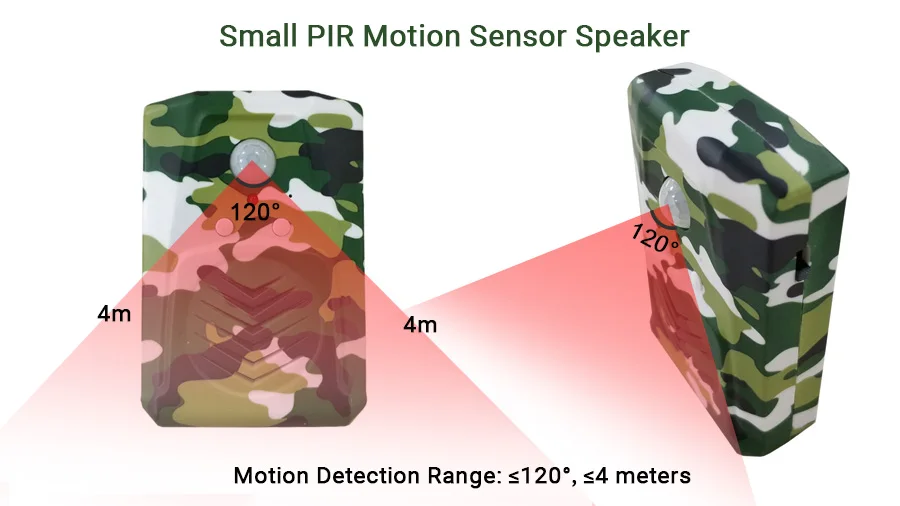

①Infrared sensing distance is 4 meters, sensing angle is 120 degrees
②Built-in 8 ohm 1W speaker, the sound is loud and loud
③Using MP3 high-quality sound chip, good sound quality
④Users can customize and replace the voice content, connect to the computer through the USB data cable to replace
⑤You can use 3 dry batteries/power supply, choose one of the two, the battery is a bright spot to solve the power supply problem in many places
⑥Multiple voice content can be played in loop for a single whole song
⑦Can support expansion capacity
⑧Two-level volume can be adjusted, the maximum volume is 90db
| Model Number | WT-M12 | WT-M13 | WT-M14 |
|---|---|---|---|
| IP Rating | indoor | indoor | indoor |
| Sensor | infrared sensor | infrared sensor | infrared sensor |
| Sensor Range | 4meters 120degree | 4meters 120degree | 4meters 120degree |
| Power Supply | 1. DC5V 2. 3x AAA battery | 1. DC5V 2. 3x AAA battery | 1. DC5V 2. 3x AAA battery |
| Volumn | ≤90db | ≤90db | ≤90db |
| Voice Changing | USB to PC | 1. USB to PC 2. TF card | 1. USB to PC 2. record via built-in mic |
| ROM | 4MB, max 16MB | 4MB, max 16MB support TF card | 4MB, max 16MB |

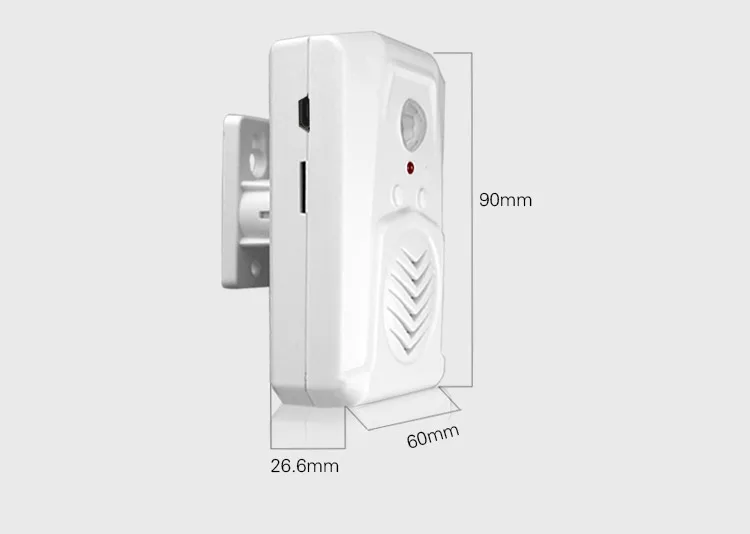

| Size(mm) | 60×22×90 | 60×22×90 | 60×22×90 |
| Application | 1. Convenience store doorbell 2. Reminder for the crowd 3. Supermarket promotion 4. Halloween 5. entertainment: Haunted house | 1. Convenience store doorbell 2. Reminder for the crowd 3. Supermarket promotion 4. Halloween 5. entertainment: Haunted house | 1. Convenience store doorbell 2. Reminder for the crowd 3. Supermarket promotion 4. Halloween 5. entertainment: Haunted house |
